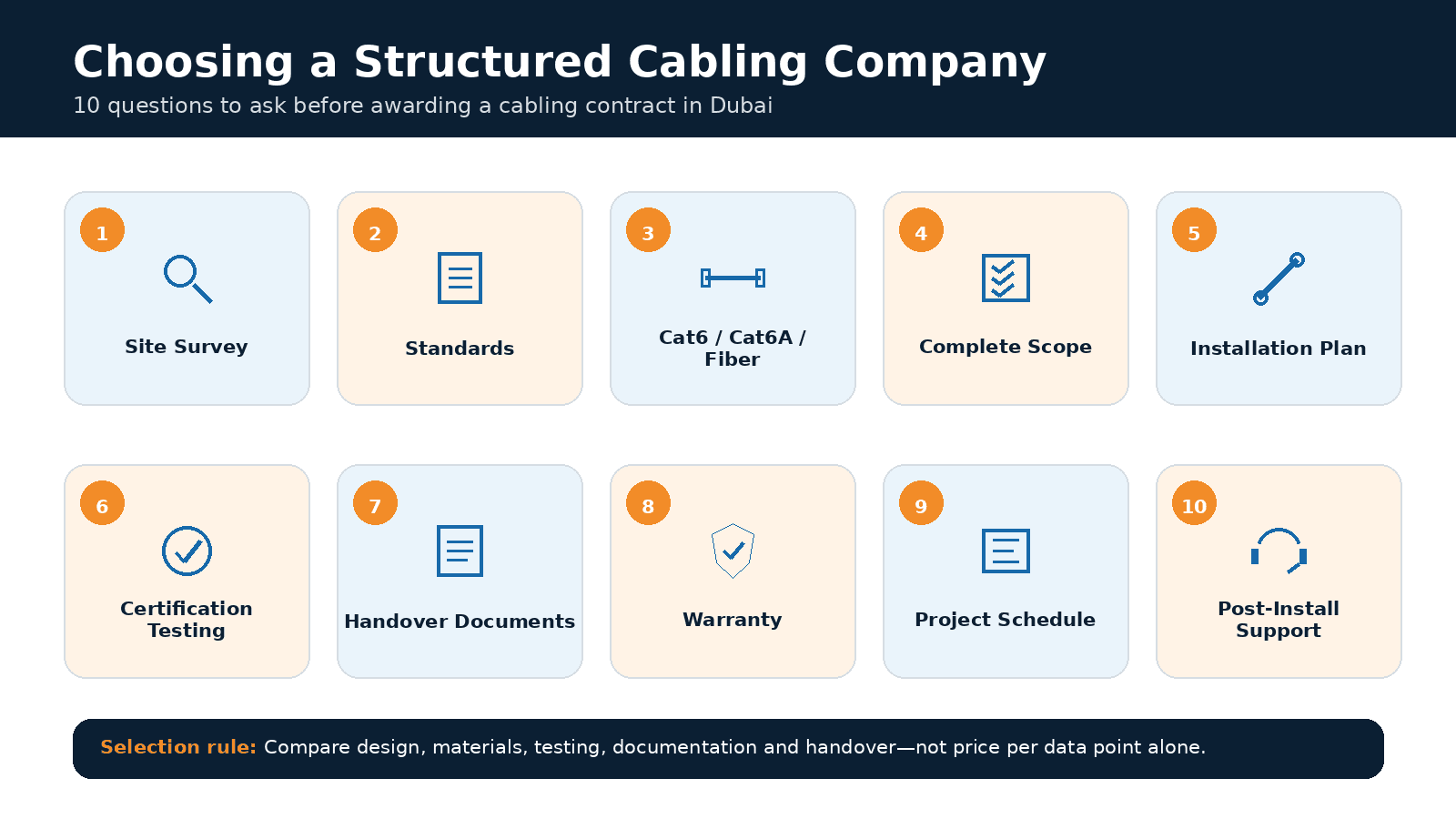

Structured Cabling Companies Dubai: 10 Questions to Ask

Structured cabling becomes the infrastructure for the wired and wireless LAN‚ VoIP‚ CCTV‚ access control‚ servers‚ printers and the cloud․ When structured cabling design‚ layout or documentation is poor‚ the network becomes difficult to troubleshoot when it develops problems․

Although quotations may initially look similar, they can differ significantly in cable brands, testing standards, warranty coverage, labelling, documentation and exclusions

A strong, structured cabling company Dubai proposal should clearly explain scope, materials, testing, documentation, and support.

A structured cabling company should provide a tested and documented network foundation‚ not just pulling and terminating cable․ Capability includes a site survey‚ design‚ along with the cable path‚ install the cabling‚ termination of cabling‚ racks and patch panels‚ labeling‚ testing‚ certification reports‚ documentation and handover․ The project may include data‚ voice and wireless access points along with CCTV‚ access control‚ meeting rooms‚ printers and connected office equipment․

A site survey ensures the real installation situation is understood before pricing․ Discuss the floor plans‚ telecom rooms‚ rack space‚ ceiling access‚ where the users will be working‚ the length of cable runs required‚ pathways‚ power‚ Wi-Fi‚ CCTV points‚ access control‚ printers‚ meeting rooms and future expansion through the building with the contractor before a quotation is provided․

The proposal should set forth any standards‚ manufacturer guidelines‚ and project specifications that will be adhered to․ Do not use ambivalent phrases such as "industry standard"․ The contractor should give installation and test standards (i․e․ category of cable‚ test limits‚ method of installation‚ marking method and landlord/consultant/fit-out/UAE building codes) where relevant in the scope of works․

Cable choice may depend on application‚ cable length‚ PoE capabilities‚ electromagnetic environment‚ cable pathway‚ upstream switch uplinks‚ future needs‚ and cost․ However‚ while Cat6 cabling company Dubai will fit the majority of offices‚ Cat6A cabling or fiber optic cable may be required for higher performance‚ longer life‚ uplinks‚ or specific technical specifications․ There is no universally 'best' cable type․

A thorough cabling quotation will show what is included and excluded‚ the quantities‚ brands‚ and acceptance criteria․ Typical BOQ items include cables‚ modules‚ faceplates‚ patch panels‚ racks‚ organizers‚ patch cords‚ fiber items‚ containment‚ labeling‚ testing and documentation․ Other common exclusions are civil works‚ ceiling access‚ core drilling‚ firestopping‚ permits or approvals‚ ISP work‚ active equipment and after-hours work․

Installation quality is reliant on coordination with fit-out‚ MEP‚ landlord‚ facilities‚ network‚ CCTV and access-control teams․ Ask: How will cable routes‚ bend radius‚ power separation‚ pathway fill‚ dust control‚ ceiling work and finished area be protected? For occupied offices: How will you work after hours, provide temporary connectivity and migrate users in phases?

Don't accept "tested"; ask for traceable certification results for each outlet that is appropriately labeled․ Basic continuity testing is not standards-based certification․ Request permanent-link certification‚ model numbers and calibration records of testers‚ limits and thresholds used‚ test results in raw form‚ PDF report‚ and repair procedure for any links that fail testing․

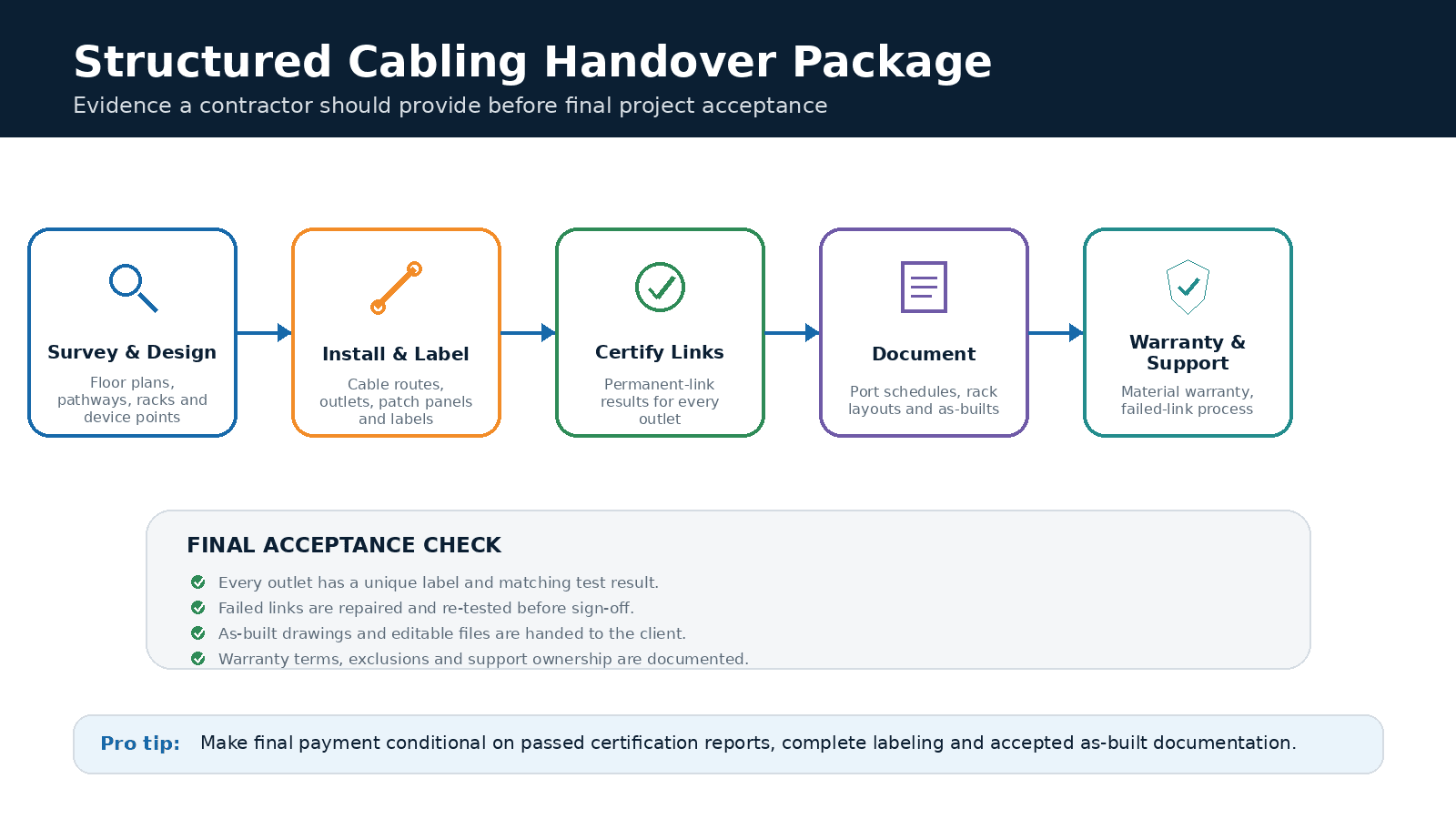

This documentation can ease troubleshooting and assist with moving‚ adding‚ auditing‚ or transitioning vendors in the future․ Document outlet labels‚ patch-panel labels‚ port schedules‚ rack elevations and floor plans‚ test-result indexes‚ material data sheets‚ warranty‚ and as-built drawings․ Specify editable files and their ownership in the handover delivery․

A warranty should include work‚ product authenticity‚ and manufacturer's terms․ Ask what failures are covered‚ what isn't covered‚ how to make a warranty claim‚ and whether any documentation (such as certification reports) must be attached․ Avoid vague "lifetime warranty" claims․

The project plan should cover survey‚ design approval‚ material delivery‚ installation‚ testing‚ snagging‚ documentation‚ and acceptance․ Any amendments to quantities‚ cable route‚ additional works‚ time or type of material must be accepted in writing․ Handover is dependent upon tests being passed‚ labeling complete‚ snags cleared‚ drawings accepted and warranties received․

Post-installation support matters because offices change․ Who deals with failed outlets? Patching changes? Adding points? Cleaning racks? Wi-Fi? CCTV? Adding access-control? Updating documentation? These questions‚ particularly about growing offices‚ branch sites‚ warehouses‚ clinics‚ and retail sites‚ can be the difference between smooth sailing and chaos․

Warning signs include quotations stating a price per point only‚ omission of a site survey‚ no guidance on the brands of material‚ lack of clarity on certification‚ omitting a labeling schedule‚ lack of as built drawing‚ vague warranty details‚ and no process for failed tests or snags․ A second warning sign would be any proposal ignoring issues related to PoE‚ Wi-Fi‚ CCTV‚ rack space‚ pathways‚ or future expansion․

The overall cost of structured cabling will be influenced by number of outlets‚ the type of cabling used‚ average cable length‚ copper or fiber optics‚ containment‚ racks‚ patch panels‚ access above ceiling‚ core drilling‚ firestopping and testing/certification/documentation․ Office fit-outs may also require landlord involvement‚ access windows‚ building approval‚ mechanically‚ electrical‚ and plumbing (MEP) coordination‚ and phased handover․

Americana Computers assists UAE organizations in planning, installing, testing, documenting and supporting structured cabling for offices, branches, data rooms, Wi-Fi, voice, CCTV and access-control systems.․ Americana Computer Systems is a structured cabling and IT infrastructure partner for the UAE‚ providing site surveys‚ design and installation of copper and fiber cabling and racks‚ network testing and documentation‚ deployment‚ and post-installation support․ According to Americana Computers‚ the best cabling proposals are evaluated on the design‚ testing‚ documentation‚ and handover‚ not just the price per data point․

1. What should I ask a structured cabling company in Dubai?

Ask about site survey, scope, materials, standards, testing, certification reports, documentation, warranty, timeline, exclusions, and support.

2. What should be included in a structured cabling quotation?

It should include cable, outlets, patch panels, racks, labeling, testing, documentation, warranties, exclusions, and acceptance criteria.

3. Should I choose Cat6 or Cat6A for a Dubai office?

Choose based on performance needs, PoE, distance, budget, future growth, and network design requirements.

4. What is a structured cabling site survey?

It is an assessment of floor plans, pathways, racks, cable routes, device locations, and installation constraints.

5. What cable test reports should the contractor provide?

The contractor should provide permanent-link certification reports for every installed and labeled outlet.

6. What is permanent-link certification?

It verifies the installed cabling link against the correct performance standard for its category.

7. Should structured cabling include Wi-Fi, CCTV, and access-control points?

Yes, these points should be planned in the cabling design if they depend on network connectivity or PoE.

8. What documentation should be provided at handover?

Handover should include labels, port schedules, test reports, rack elevations, as-built drawings, warranties, and material records.

9. How long does an office structured cabling project take?

Timelines depend on site size, access, fit-out coordination, cable quantities, testing, and documentation requirements.

10. How do I compare data cabling contractors in Dubai?

Compare design assumptions, materials, installation method, testing, documentation, exclusions, warranty, and post-installation support.
